Eco-Cold Sliding Low Temperature Door Operators

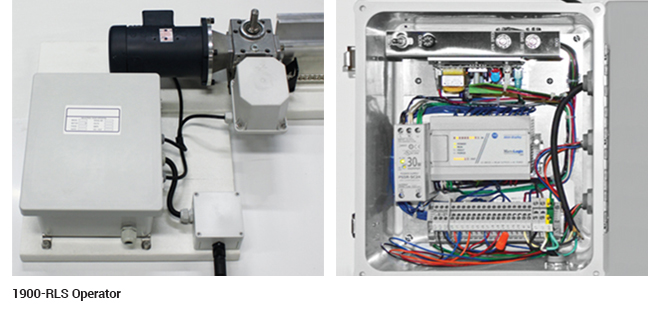

Eco-Cold 1900-RLS Operator

Developed and designed by Chase Engineers, the 1900-RLS provides exceptional performance in cold storage environments. The 1900-RLS provides field proven safe, dependable operation. Even large, heavy doors operate smoothly and effortlessly. The 1900-RLS incorporates standard features including pre-wired components, variable speed operation with soft start/stop, a rotary limit switch, and a NEMA 4X control box. The soft start feature ensures smooth panel travel on startup, stop and reversing. The rotary limit switch is preset to 90% of travel at the factory reducing installation time and potential mistakes that can occur in the field. Plus, permanently lubricated components and self-diagnostics reduce troubleshooting and maintenance that is typical on many door systems.

Standard Features of the 1900-RLS Operator

A NEMA 4X enclosure

Variable speed motor opens at speeds up to 40 inches per second for a single slide door and up to 80” per second for a bi-parting door (subject to door size)

Soft start/stop feature allows the operator to slow down at the end of the door’s travel adding life to the door system and provides an added measure of safety and reduced preventative maintenance

Pre-wired and pre-mounted control panel from the factory simplifies installation and allows the factory to fully test the operator prior to shipping, virtually, “plug and play”

120, 208, 240, or 480 volt incoming single and 3-phase power options available

UL listed and labeled control panel

Standard Electric Operator

Totally enclosed, fan cooled, 1/2 HP, instant reversing, electric motor operating at 18 per second travel speed for a single slide and 36 per second for a bi-parting slide.

Panel mounted reverse edges.

Heavy duty enclosed gear drive with adjustable torque limiter.

Manual disconnect including inside safety release.
