Eco-Cold Swinging Low Temperature Door Features and Benefits

Unique design allows Non-CFC foamed-in-place polyurethane insulation to lock in place with the fiberglass reinforced polymer (FRP) producing an extremely durable, insulated panel.

Magnetic vinyl push-in gasket is standard on all Eco-Cold swing doors.

A variety of finishes are available, the standard finish is 26 gauge USDA stucco embossed galvanized in gray, white or black.

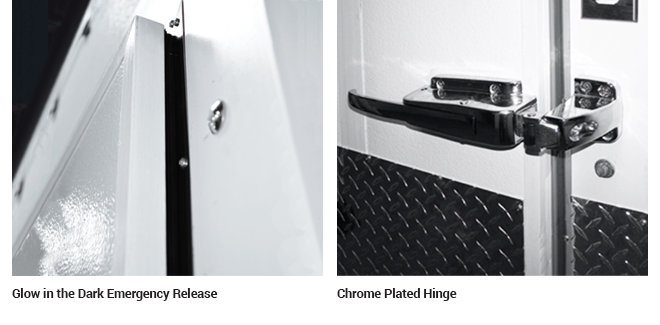

Heavy duty chrome plated hinges and latch. Nickel plated strap hinges are standard on larger doors.

Frame is flush with the floor line, making installation easy as there is no need to embed a sill in concrete.

Self-lubricating cam lift hinges raise the door when opened, providing reduced friction on floor seal.

Door panels are available in 4” and 6” panel thickness with an R Value of 32 and 48, respectively.

Emergency release latch allows the door to be opened from the inside even when padlocked from the outside (shown on following page with glow in the dark option).

All doors are custom manufactured to your exact requirements.

115V full perimeter heat is standard on freezer doors.

Factory tested and shipped ready for installation.
