A sliding low temperature track system and floor guide system

Eco-Cold Sliding Low Temperature Door Features and Benefits

Specially designed gusseted steel corner brackets are machined to perfectly fit inside the profile of the FRP pultrusions, providing exceptional frame strength and eliminating the need for aluminum, wood and PVC bracing.

Unique design allows Non-CFC foamed-in-place polyurethane insulation to lock components in place with the fiberglass reinforced polymer (FRP), producing an extremely durable, insulated panel.

Door panels are available in 4” and 6” panel thickness with an R Value of 32 and 48, respectively.

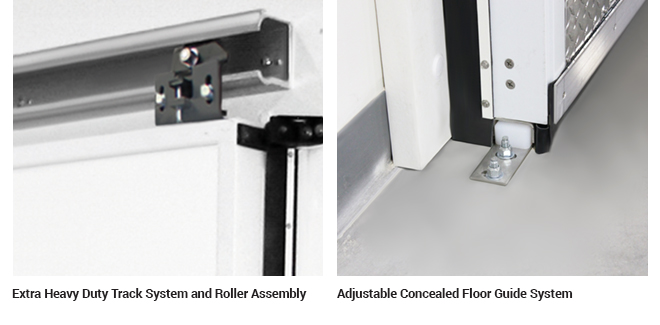

Maintenance free heavy duty extruded aluminum track rail with two 700 pound capacity 1-1/4” wide x 4” diameter double ball bearing polyurethane rollers, rollers backed with lifetime warranty.

Heavy duty 2-1/2” diameter non marking floor roller or UHMW under-panel track guides with stainless channel guide the sliding panel as it opens and closes.

Freezer doors have perimeter heat to prevent moisture or ice buildup.

Electric models feature a manual emergency release on both sides of the door to allow access during power failure. All freezer doors are ETL listed.

All door components including track, panel gasket system and optional operator are designed to provide years of trouble free service.

Factory tested and shipped ready for installation.

All doors are custom manufactured to your exact requirements.
